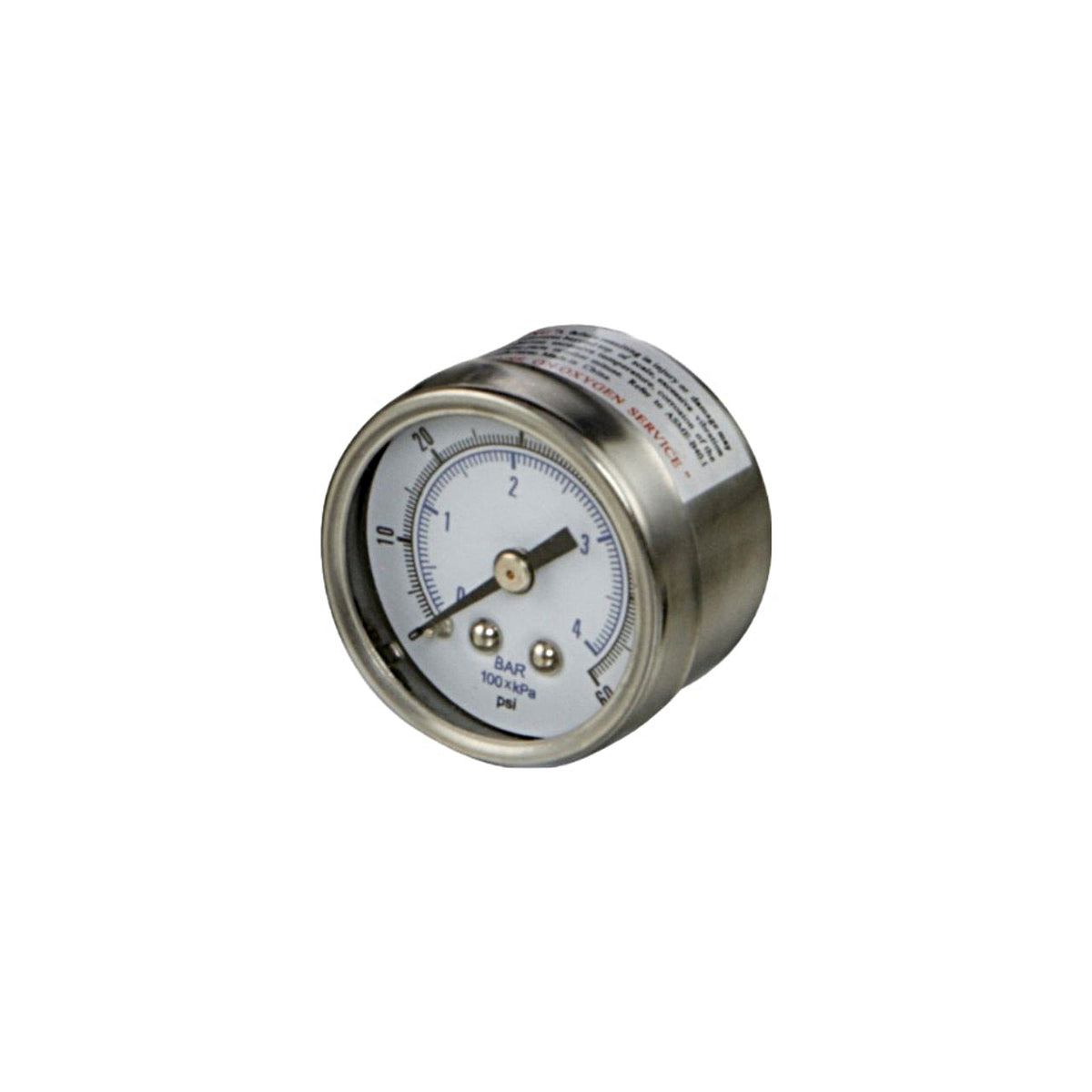

DONALDSON Filter Gauge 0-60psi

The Donaldson 0-60 psi Filter Gauge is a compact, visual pressure gauge primarily used on Clean & Dry fuel filter/dryer systems and low-pressure hydraulic or diesel systems.It allows operators to monitor system restriction and ensure optimal fluid cleanliness.

• Outer Diameter: 1.65 Inches (42 MM)
• Thread Size: 1/8 NPT
• Diameter: 1.50 Inches (38 MM)
• Style: Pressure
• Pressure Range: BAR: 0 - 4.1 / PSI: 0 - 60
• Connector Location: Center Back

Initial Readings: When filters are fresh and clean, the restriction is low.

High Readings: As the filter accumulates contaminants, resistance to flow increases, causing a spike in the psi reading.

Maintenance: If the gauge approaches the higher end of the scale (or reaches the filter’s maximum recommended restriction limit), it indicates that the filter is clogged and requires replacement.
