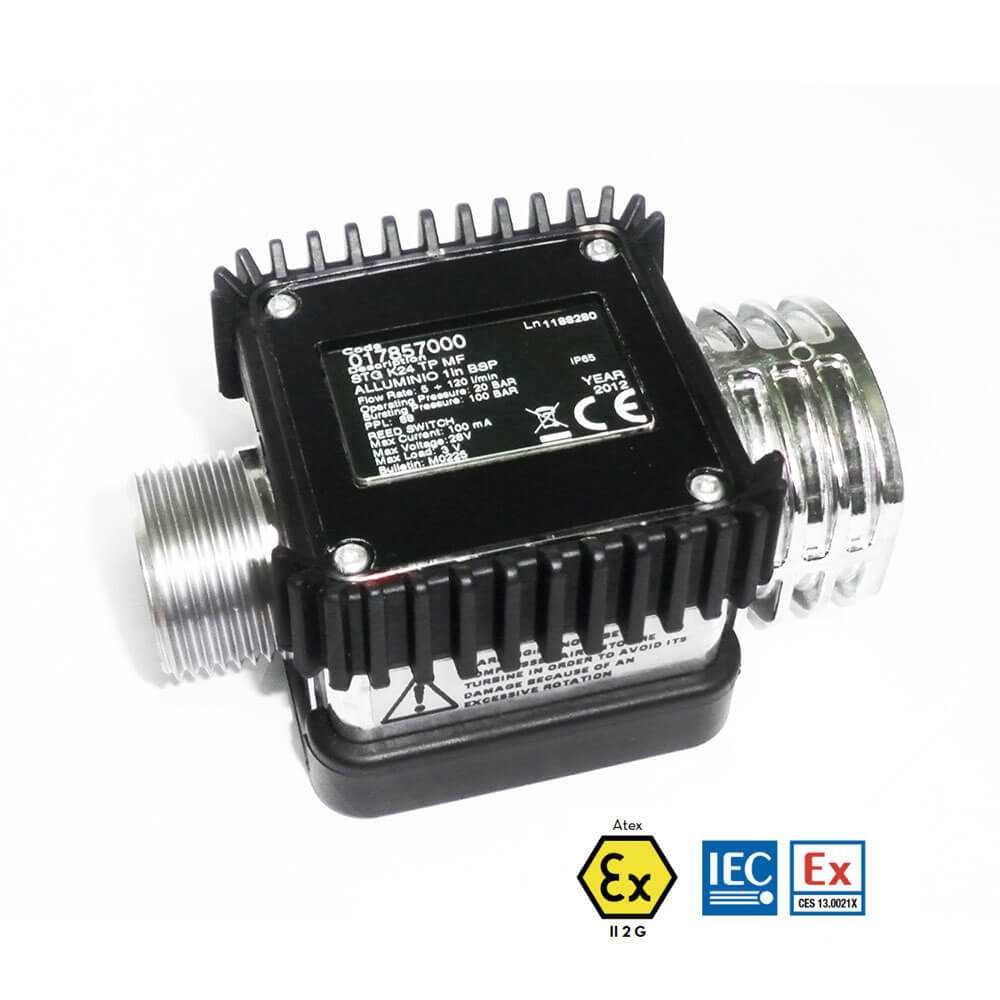

PIUSI Pulse Meter K24 ATEX/IECEX 25

• New meter for the accurate measurement of the quantity dispensed
• Meets the ATEX/IECEx requirements related to the use of materials in potentially explosive atmospheres.
• Digital pulse meter for low-viscosity fluids.
• The ideal instrument for controlling fluid dispensing.
• Sturdy casing and a sealed electronic card make it suitable for use in practically all conditions.
• Aluminium body
• Impulse-type signals: single channel, reed switch
• Repeatability 0.3 %
• Loss of pressure < 0.03 bar at 120 l/min
• 7-120lpm
• Accuracy+/- 1%
• BSP Male / Female Thread
• 92 pulses per L
• 20 bar pressure rating
• UL approved model available

ATEX / IECEX - Approval Classification

• Group - II
• Category - 2
• Type of Explosive Atmosphere - G
• Permanent Prefix - Ex
• Protection Method - ia
• Gas Class - IIB
• Temperature Class - T4
• Equipment Protection Level - Tb
