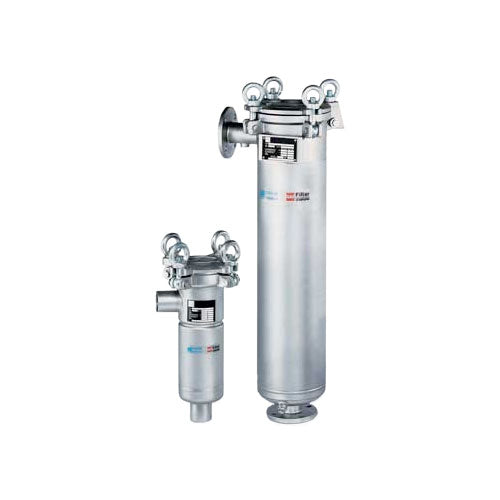

EATON Sideline Bag Filter Housings
The Eaton Sideline Bag Filter System is designed for use with bulk diesel or gasoline (petrol) tanker unloading applications into your storage tank. A bag filter is designed to hold large amounts of particles thus ensuring the cleanliness of the fuel in your bulk storage...
Description
Product Range
| Value Added Feature | Benefit |
|---|---|
| Side–entry inlet with evacuation cover | Eliminates spillage of liquid on opening |
| Cover adaptable to different opening directions | Perfect accessibility, easy maintenance |
| Integrated handle in cover-lid | Ergonomically and easy to open |
| Bag hold-down ring compressed by cover-lid | Good 360° sealing of the filter bag |
| Swing eye-bolt closure | Easy and robust opening and closing |
| Electropolished SS 316 perforated plate basket | Perfect bag support, easy to clean |
| Mounting legs to adjust housing height (option) | Stable and adjustable construction |
| Description | Sbf-0101-ab | Sbf-0102-ab |
|---|---|---|
| Filter Bag Size | #01 | #02 |
| Filter Area | 2.6 sq ft | 5.0 sq ft |
| Max. flow - Water* | 90 gpm | 180 gpm |
| Maximum Operating Pressure | 150 psi | 150 psi |
| Maximum Operating Temp. With Viton Seals | 204C | 204C |
| Standard Inlet/Outlet | 2” or 3” 150#, RF ANSI flanged | 2” or 3” 150#, RF ANSI flanged |
| Vent Ports 1/4” NPT | 2 | 2 |
| Drain 1/2” NPT | 1 | 1 |
| Number of Seals | 2 | 2 |
| Material of Construction | Stainless Steel Type 304 or 316 | Stainless Steel Type 304 or 316 |
| Housing Weight - Dry | 38 kg | 46 kg |
| Filter Volume | 18L | 32L |
| Surface Finish | Bead blasted | Bead blasted |
| Non-Wetted Parts | Zinc-plated mild steel | Zinc-plated mild steel |
| Code Stamp | ASME Section VIII Div 1, (“U” stamp option) | ASME Section VIII Div 1, (“U” stamp option) |
| Seal Material | Buna N™ (Max. 121C) | Buna N™ (Max. 121C) |
