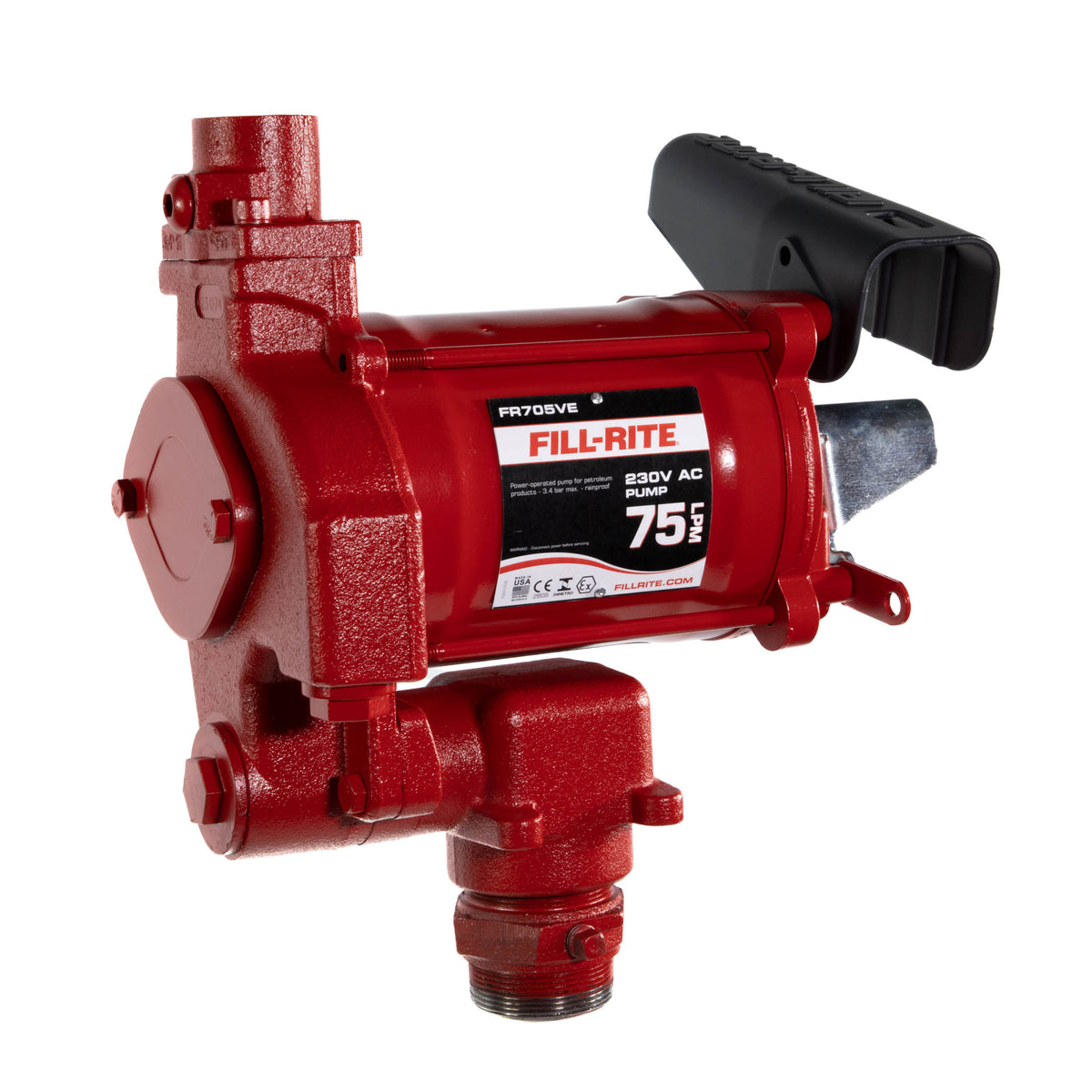

Fill-Rite FR700 Pump - 240V AC, 75 Lpm

Fill-Rite FR700-SERIES - 240V AC, 75 Lpm, Fuel Transfer Pump - Bung Mount

This model is a 240V AC, 75 LPM, heavy-duty fuel transfer pump. Fill-Rite's 700 Series of heavy-duty fuel transfer pumps are built to last with cast-iron construction and rotary vane technology, which maintains peak performance over time. FEATURES: Cast-Iron Construction — heavy-duty, cast-iron construction provides...

$2,139

ex GST

Size

Description

This model is a 240V AC, 75 LPM, heavy-duty fuel transfer pump. Fill-Rite's 700 Series of heavy-duty fuel transfer pumps are built to last with cast-iron construction and rotary vane technology, which maintains peak performance over time.

FEATURES:

  • Cast-Iron Construction — heavy-duty, cast-iron construction provides unmatched durability, withstanding the harshest conditions out in the field or at the job site
  • High Performance — Fill-Rite’s trusted rotary vane pump technology delivers 75L per minute, perfect for filling large equipment with fuel tanks sized at 75-302L
  • Stationary Tanks — powered by a 230V AC motor and equipped with a 50.8mm bung mount, this pump is ideal for wiring to a standard 230 volt AC electrical supply and installing onto stationary aboveground tanks
  • Reliable Technology — rotary vane technology naturally maintains its day one performance levels as it wears down from normal use, allowing for consistent performance over the entire life of the pump
  • Long Life — thermally-protected motor prevents overheating, ensuring your pump performs for years without worry
  • Equipment Safeguard — built-in mesh strainer filters out particulates in fuel, preventing damage to your equipment
  • Limited Lifetime Warranty — we stand behind our product with an industry-leading Limited Lifetime Warranty to protect your investment.

PERFORMANCE:

  • Max Flowrate: 75 Lpm
  • Power Type: 240V AC
  • Compatible Fluids: Diesel, Kerosene, Biodiesel up to B20, Gasoline up to E15, Mineral Spirits, Heptane, Stoddard Solvents
  • Inlet Size / Connection / Thread: 25.4mm / Female / BSPP
  • Outlet Size / Connection / Thread: 25.4mm / Female / BSPT
  • Mounting Size / Thread / Type: 50.8mm / BSPT / Bung Mount
  • Duty Cycle (min): 30 min on / 30 min off
  • Motor Power (HP): 0.33
  • Max Current (A): 2.4 A
  • Suction Lift (mm): 4572
  • Dry Vacuum (mm Hg): 279.4
  • Discharge Head (mm): 16154.4
  • Strainer Mesh Size (Micron): 40 x 40 x .010
  • Max Discharge Pressure (PSI): 23 PSI
  • Viscosity Range (cSt): 0.38 - 2.4

DIMENSIONS:

  • Assembled Product Height x Width x Depth (mm): 317.5 x 368.3 x 159
  • Assembled Product Weight (kg): 16.7
  • Package Height x Width x Depth (mm): 260.3 x 522.2 x 496.8
  • Gross Weight (kg): 23.8
