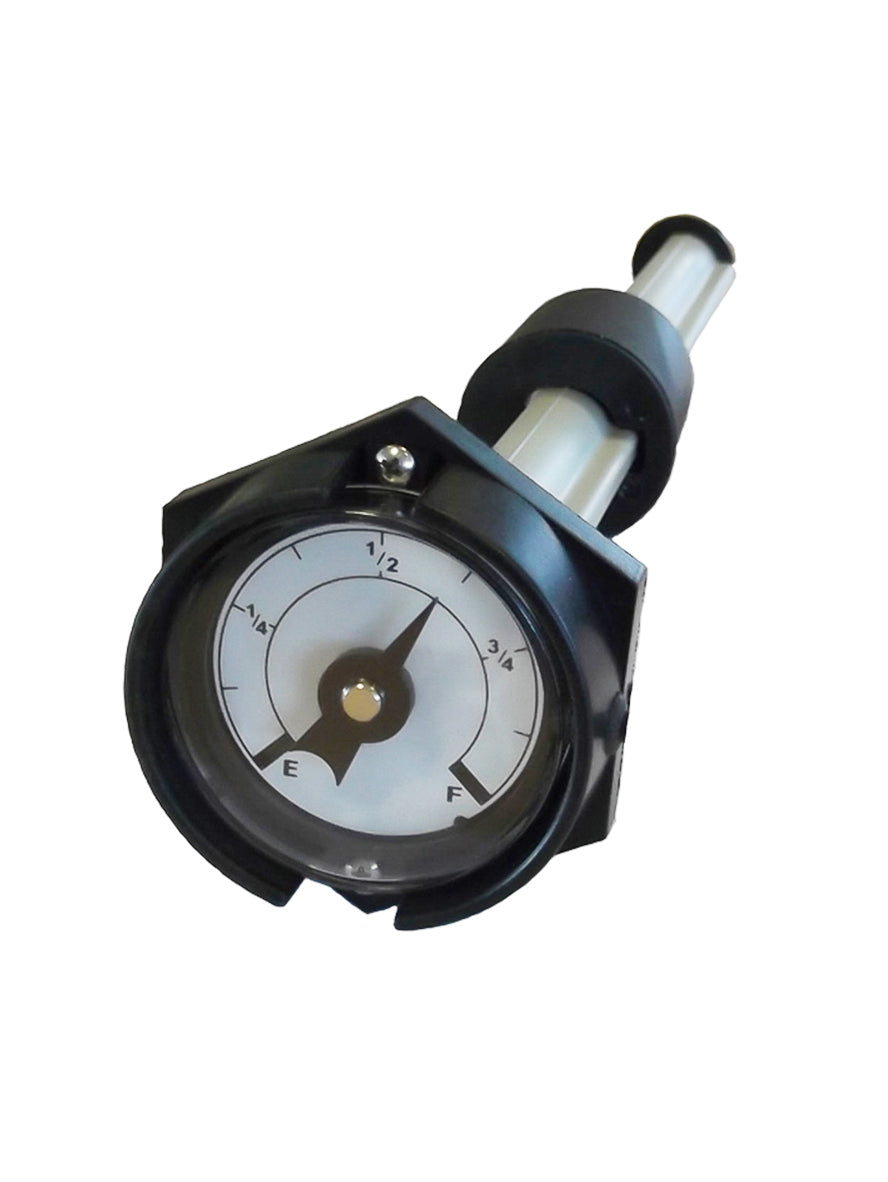

FOZMULA G/LL63 Liquid Level Contents Gauge

Name: FOZMULA G/LL63 Liquid Level Contents Gauge
Brand: FOZMULA
Availability: InStock

The Model G/LL63 series vertical spiral gauge is a mechanically operated liquid level gauge. The gauge is mounted vertically from the top of the tank so as the liquid level changes the float follows that change and uses a magnetic coupling to transfer that motion...

Fuel tank hire

Description

The Model G/LL63 series vertical spiral gauge is a mechanically operated liquid level gauge.

The gauge is mounted vertically from the top of the tank so as the liquid level changes the float follows that change and uses a magnetic coupling to transfer that motion from the float to the level indicator dial.

The gauge is completely sealed so there is no risk of the tank contents leaking through the gauge header.

SPECIFICATION:

Liquid Types

Liquids compatible with the construction materials, typically fuels, oils, water.

Materials

Header: 30% Glass Filled Nylon 66

Guide Rail: Anodised 6005-T5 Aluminium

End Cap: 30% Glass Filled Nylon 66

End Cap Screw: A2 Stainless Steel

Spiral: 316 Stainless Steel

Float: Polypropylene

Dial Capsule: Polycarbonate
