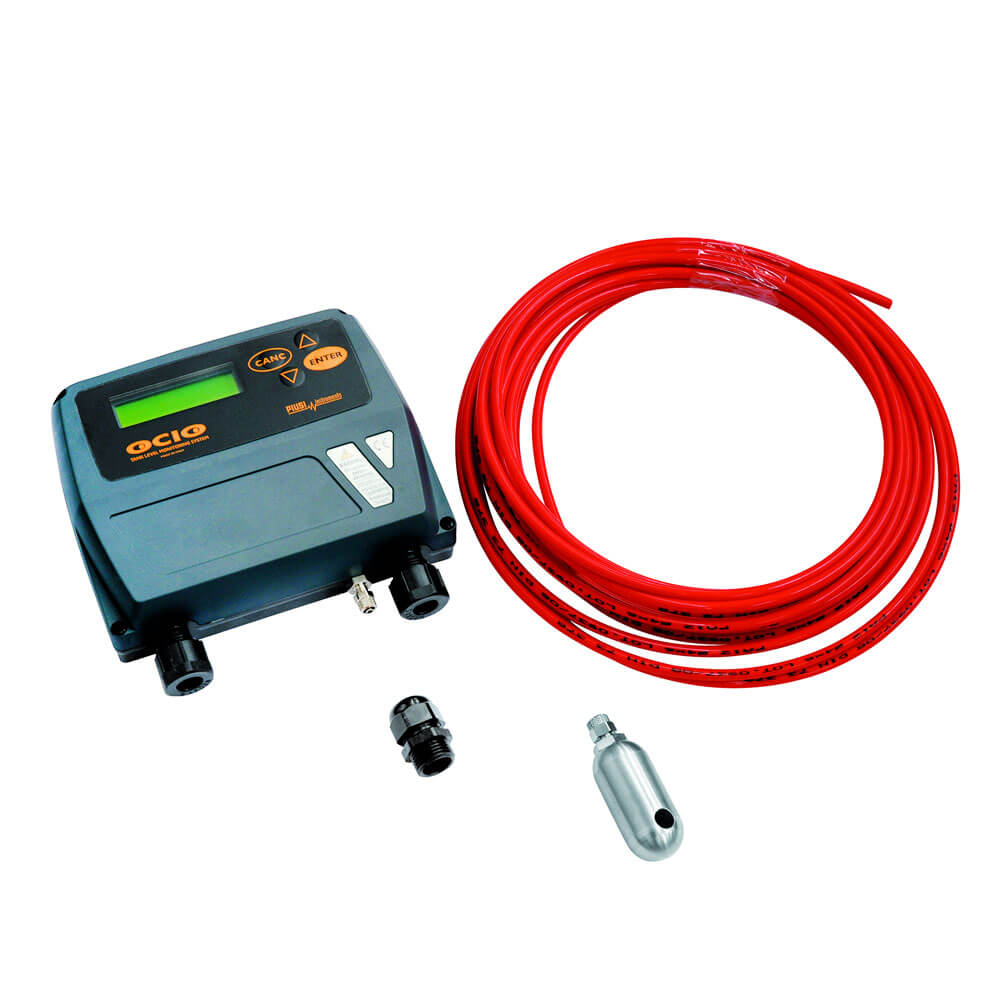

PIUSI OCIO Tank Gauge - 240V, Single Tank Display, 4-20ma output signal - from PETRO Industrial

PIUSI OCIO Tank Gauge - 240V, Single Tank Display, 4-20ma output signal

Continuous tank level monitoring. OCIO detects the static pressure generated by the fluid height by means of a tube inserted into the tank and displays the fluid level or volume. The unit is equipped with an intuitive, complete software and permits the connection of two...

$1,124.20

incl GST

SKU: F00755160

Description

  • Continuous tank level monitoring.
  • OCIO detects the static pressure generated by the fluid height by means of a tube inserted into the tank and displays the fluid level or volume.
  • The unit is equipped with an intuitive, complete software and permits the connection of two alarm or lock devices.
  • Depending on the set alarm levels, the control unit activates or deactivates the contact by acting as a remote switch for starting the alarms or cutting power to the connected equipment.
  • Maximum measurable height: 4m.
  • Probe tube length: 10 m.

The system consists of:

  • A tube for detecting static pressure: The tube end is inserted from the top of the tank and lowered down into the liquid until it touches the bottom.
  • A control unit for displaying the level and managing the system.

The software is used to:

  • Set tank type and dimensions.
  • Define alarm levels.
  • Define indication level.
  • Define measurement unit.
  • Calibrate the instrument.

Technical information:

  • Supply voltage 230 V / 50 Hz (120 V / 60 Hz).
  • Protection IP 55.
  • Full scale 4 m (12 feet).
  • Accuracy Å} 1 % full scale Contact for maximum and minimum level.
  • Max tension 250Vac at 5 Amp (or 30Vdc at 5 Amp).
  • Probe tube length 10 m (10,6 yards) (extensible up to 50 m (52 yards).

Level indication:

  • Height (mm, inch).
  • Volume (liters, gallons).
  • Filling percentage (%).
  • RS output for PC connection available.

Main Advantages:

  • Continuous metering.
  • Indication in height, volume, and filling percentage.
  • Maximum and minimum level alarms.
  • High accuracy.
  • Intuitive software managing procedure.
  • Easy installation.
  • PC linkup option.
