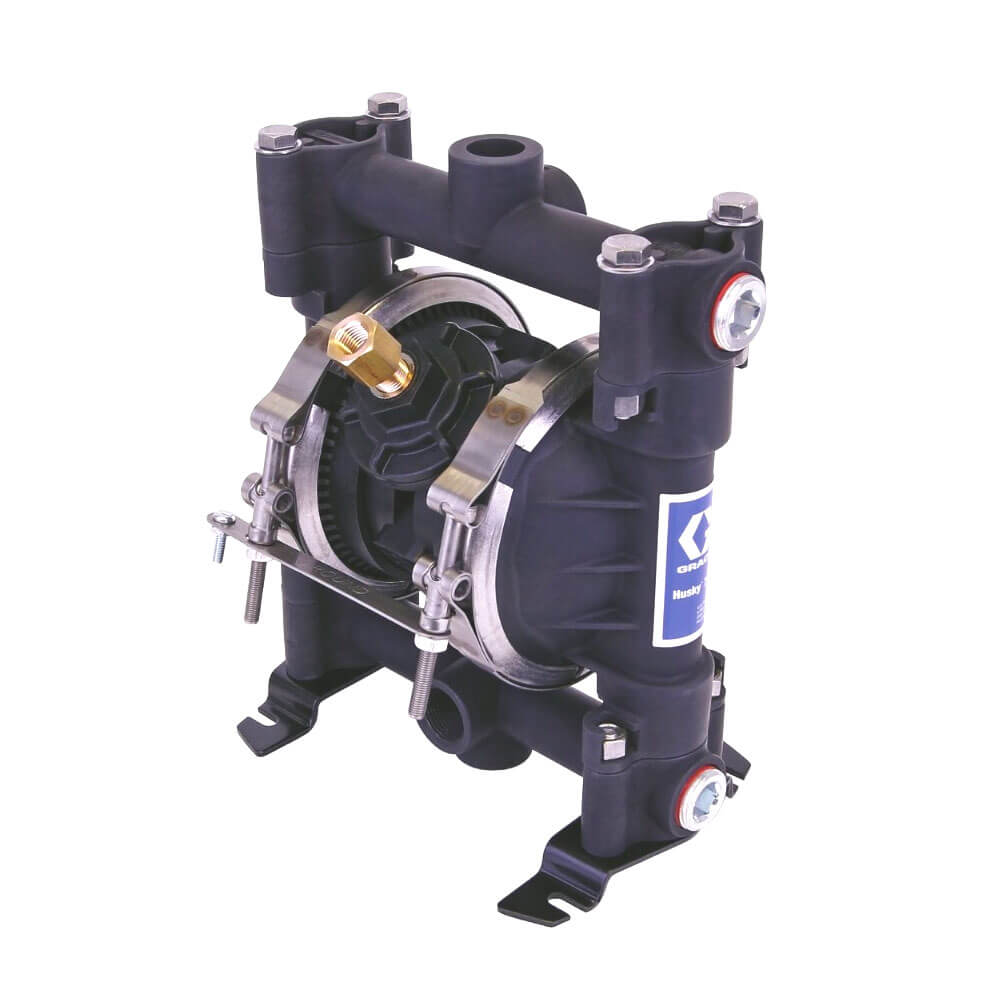

GRACO Husky 716 3/4" Air Operated Diaphragm Pumps

GRACO Husky 716 3/4" Air Operated Diaphragm Pumps

The Husky 716 air operated diaphragm pump delivers up to 16 gpm (60.6 lpm) of uid and features center and end porting options. This 3/4-inch double diaphragm pump has an external controller for remote control capabilities and is available in aluminium and 316 stainless steel...

$1,749

incl GST

SKU: D53277

Size

Description

The Husky 716 air operated diaphragm pump delivers up to 16 gpm (60.6 lpm) of uid and features center and end porting options. This 3/4-inch double diaphragm pump has an external controller for remote control capabilities and is available in aluminium and 316 stainless steel constructions. Ideal for bulk antifreeze and windshield solvent transfer.

Max Fluid Flow: 16 gpm (61 l/min) Max Fluid Discharge Pressure: 100 psi (7 bars, 0.7 MPa) Max size pumpable solids: 3/32 in (2.5 mm) Fluid displacement per cycle: 0.04 in (0,64 liter) Max suction lift: 4.5 m dry, 7.6 m wet (water with Buna Balls)

BENEFITS:

  • Centre- and end-porting.
  • No mechanical seals which causes fluid leaks or failures.
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler capability for even lower noise levels.
  • Easy-to-service air valve and ball checks.
  • 3/4 in (19.05 mm) centre - and end-porting.
  • No seals to leak or fail.
  • Easy-to-service air valve and ball checks.
