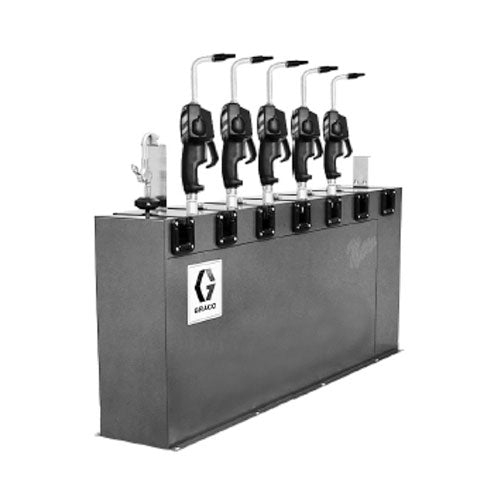

GRACO Multi Station Console Range
For storage of dispense valves where product is piped from beneath the floor.
ACCESSORIES:
$5,005
incl GST
SKU: 222629
Description
Product Range
| Code | Item | Description | Console Dimensions (without brackets) |
|---|---|---|---|
| 222629 | Six Station Console | Includes upper and lower floor plates with roller guides and brackets (1-110236; 5-196471) to hold one water bib and five Graco LDM dispense valves. Console requires a floor opening of 6in x 51in 15.2cm x 122.4cm | 27in H x 54in L x 12in W 68.58cm H x 139.7cm L x 25.4cm W |
| 223428 | Four Station Console | Includes upper and lower floor plates, roller guides and brackets (1-110236; 3-196471) to hold one water bib and three Graco LDM dispense valves. Console requires floor opening of 6in x 33in 15.2cm x 83.8cm | 27in H x 36in L x 12in W 68.58cm H x 139.7cm L x 25.4cm W |
| 222645 | Single Add On Fluid Module | For adding-on to four- or six-station consoles. Includes add-on module, floor plates with roller guides to fit module and one 196471. Console requires floor opening of 6in x 8-1/2in 15.2cm x 21.6cm | 27in H x 9 in L x 10in W 68.5cm H x 22.86cm L x 25.4cm W |
| Code | Description |
|---|---|
| 178670 | Roller only |
| 196471 | Universal dispense valve bracket for EM5 and PM5 |
| 222641 | Console roller repair kit (upper) |
| 218591 | Floor plate roller repair kit (lower) |
| 110285 | Pistol-grip dispense valve bracket |
| 110236 | Water bib bracket |
| 110237 | Em6 mounting bracket |
| 249440 | Matrix dispense valve bracket |
| 234423 | End panel replacement comes with 8 screws |
