PT Container Fuel Tank (110,000L Capacity)

FEATURES:

• CONTAINER FOOTPRINT - Manufactured to standard 10ft, 20ft, 40ft and 48ft container footprint. CSC Plated as Standard Container, can be transported by train, truck, ship and plane globally. True intermodal fuel / lubricants storage solution
• CSC PLATED - CSC Plated as a Standard Shipping Container. Can be transported via Sea / Rail or Road.
• MAXIMISE FOOTPRINT - Rounded Rectangular tank profile maximises storage footprint whilst maintaining full under tank visibility for long term tank fuel / oil storage applications
• APPROVALS - Designed and approved to UL142, ULC-S601, AS1940, AS1692, AS1657
• STEEL SPECIFICATION - Corten 350mpa
• WALL THICKNESS - Both Walls 6mm (2 x 6mm)
• INTEGRATED VALVING - 76.2mm (3") Anti-Syphon Valve LT-1 and Overfill Protection Valve.
• OVERFILL ALARM - Battery Operated (12V) Overfill Alarm
• FILL INLET - Supplied with 80mm (3") Fill Line including Sch 40 Pipe, ANSI 150# Flanges, Camlock Male Fitting with Dust Cap, Fire Safe Ball Valve for isolation and Wafer Style Non Return Valve.
• SUCTION OUTLET - supplied with 80mm (3") Suction Line including Sch 40 Pipe, ANSI 150# Flanges terminating with a Fire Safe Ball Valve.

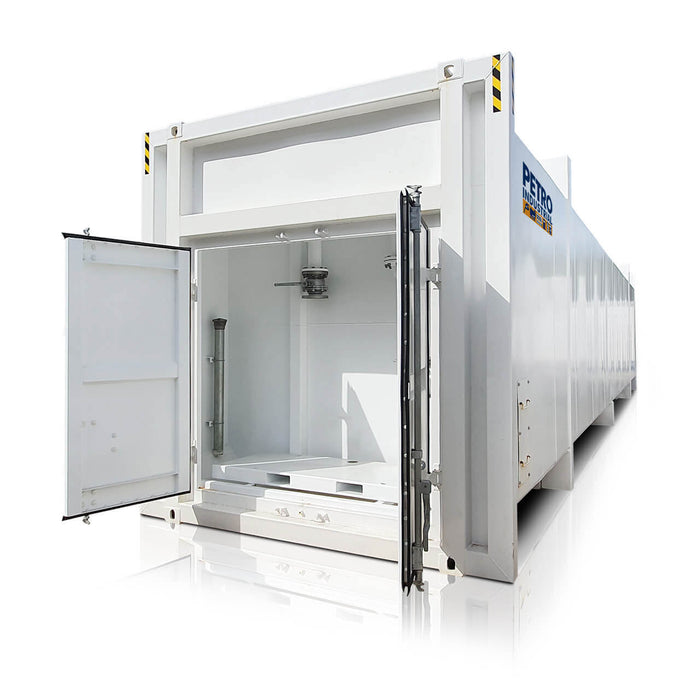

• BUNDED PUMP BAY HOUSING - Integrated Full Height Pump Bay Housing featuring removable side panels to allow for simple multiple tank connection for tank farm applications. Full Height design allowing the user to fit a wide range of dispensing, filtration and metering equipment within the tank footprint.
• LADDER + PLATFORM - Integrated Ladder / Platform designed to AS1657. Cleverly engineered fold out / fold down aluminium platform and ladder design. Full ladder assembly can be retracted / folded up to allow the tank to be moved as a standard CSC Plated Container.
• MANWAY - 600mm Manway with Integrated Ladder down into the tank module (2 x manways provided on all tanks larger than 12 000L) to assist with degassing for future tank maintenance
• PAINT SPECIFICATION - Paint Colour RAL9003 Signal White/ Tanks are sandblasted to SA2 Standard. Hempel Marine Paint 3 Stage process. Primer Hempadur 1530. 2nd Coat Hempadur Hi-Build 4520. Final Coat Hempathane Enamel 55100 Finished dry film thickness no less than 180 um
• OPTIONAL BAFFLES - Option for baffling in order to allow the tank to be moved with liquid.
• LIQUIDS COMPATIBILITY - Suitable for the storage and dispensing of diesel, biodiesel, lubricants, gasoline (petrol) and waste oil.
• MULTIPLE COMPARTMENT - multiple compartment tanks are available in all footprints to allow the storage of multiple grades / types of liquids such as various grades of lubricants or different fuels
• DE-WATERING - Rounded Floor Profile with engineered low point. Tank fitted with 25mm Suction Line for Water Removal

See an example of a 110,000L PETRO PT Series self bunded tank built to spec for a mining operation! The PT Series bulk fuel tank is used for Tank Farms as an above ground diesel storage tank, used to refill mining equipment.
