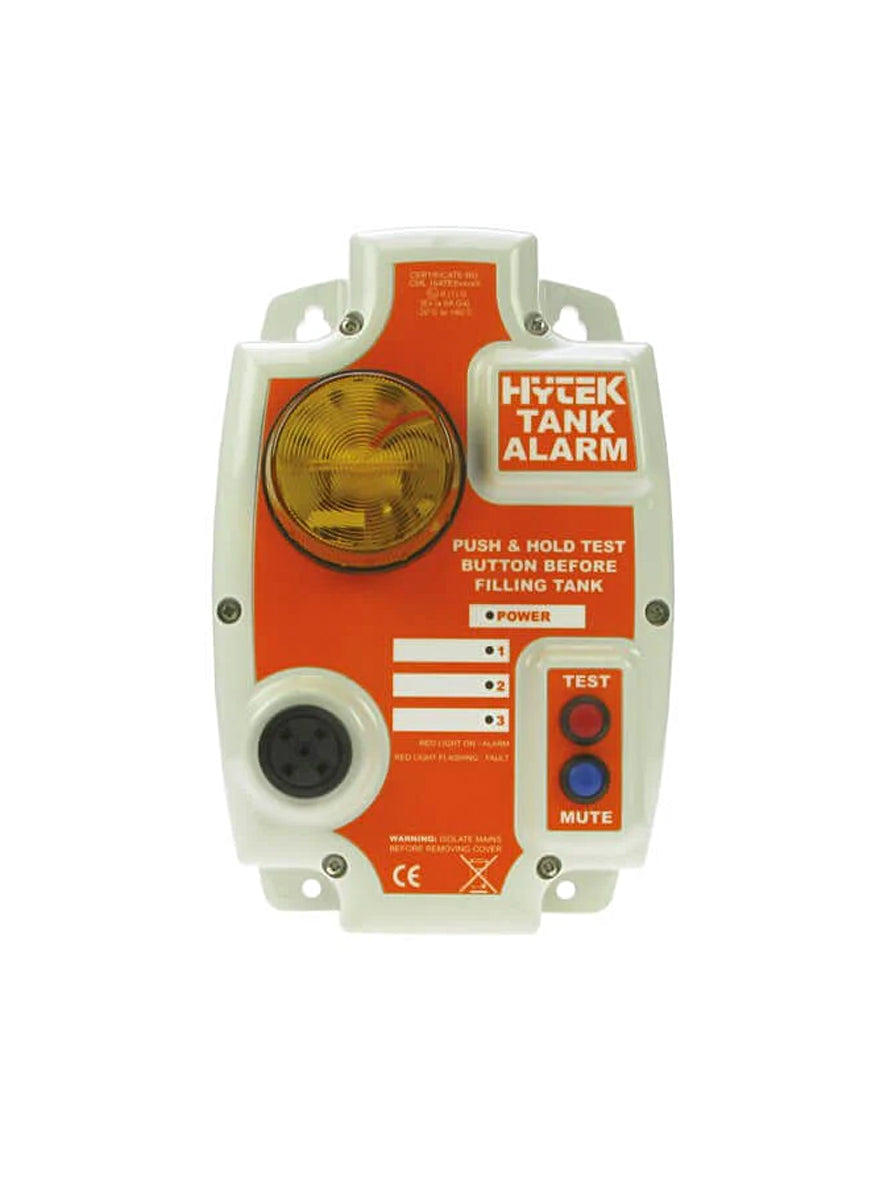

PETRO Tank Alarm - 3 Channel Float Operated

FEATURES:

• Professional quality tank alarm with 3 input channels.
• Designed to detect overfill, low levels or bund alarm situations on one, two or three tanks.
• Suitable for use with diesel or biodiesel up to B100, oils or water. Diesel Exhaust Fluid option available.
• 230V, 110V or battery operation.
• IP55 weatherproof enclosure.
• Each channel can be used as an overfill, low level or bund alarm.
• High power alarm sounder, 98db at 1m.
• High visibility flashing zenon beacon.
• Plug & socket field connections for quick & easy installation.
• Test button checks probes, beacon & sounder.
• No zenon beacon on battery versions but individual channel LED’s.
• Relay outputs available.
• Size: (mm) 163L x 115W x 250H.
• ATEX and IEC/IECex certified

110V OR 240V TANK ALARM KITS:

• Each kit comes with a 230V alarm box, tank float switch c/w flat plate/gasket for fitting to any tank & 11⁄2” cap for steel tanks.
• Our float switches are universal & can be used to detect an overfill/hi level, bunds or low level alarm.
• Relay Option - Volt free contacts for each channel (1 relay output per channel)
• Relay Option - Can be used to switch secondary equipment, sounders etc.

12V BATTERY TANK ALARM KITS:

• Similar to units above but powered via internal batteries. (batteries supplied, type D x 4) No zenon beacon.
• Battery life depends on number of test & alarm incidents.
• Relay Option - Volt free contacts for each channel (1 relay output per channel)
• Relay Option - Can be used to switch secondary equipment, sounders etc.

IMPORTANT WARNING NOTES:

• The PETRO Tank Alarm MUST NOT be used to monitor petrol or other highly flammable liquids with a flash point below 55 degree C.
• It is designed for use with diesel, gas oil, water, hydraulic oil and heating oil. Can be used with Anti-freeze or Adblue if optional stainless steel float switch assembly is fitted.
• It must not be sited adjacent to a petrol dispenser or in any other hazardous zone.
• It must not be sited below ground level.
• Installation of this equipment should be carried out by a qualified fuel installation engineer.
• The installation must conform to all relevant electrical and local authority regulations and standards.
• Only PETRO float switches can be used with the PETRO alarm.
• This product must not be used if it is damaged.

OVERFILL ALARM 240V Includes:

• 3 x Relays
• 3 x Float Switches
• Xenon Flashing Light
• Audible Alarm
