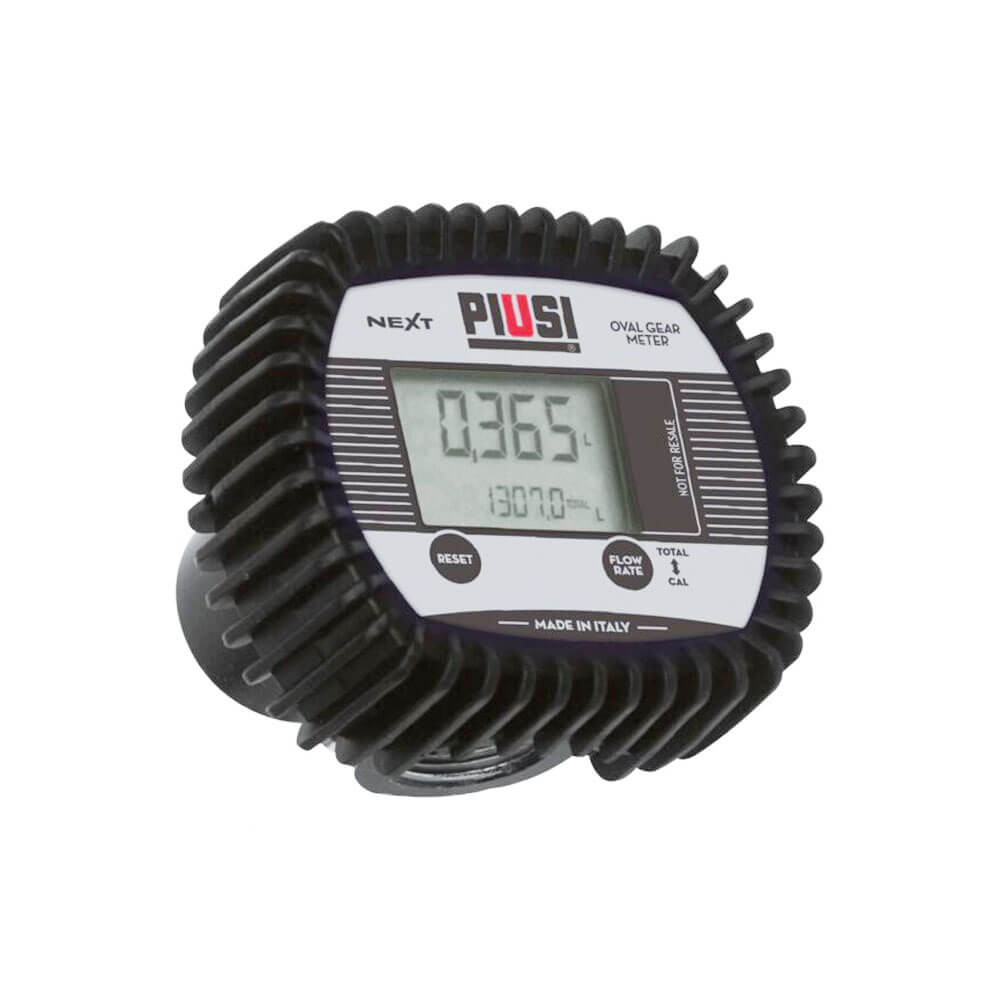

PIUSI Lubrication NEXT/2 Digital Flow Meter

Oval gear electronic flow meters in acetal resin for controlling non-commercial dispensing of low, medium and high viscosity fluids including fuels, lubricating oils and other special fluids compatible with construction materials.

• Body features aluminium measuring chamber.
• 5-digit partial total (h=11.5 mm) with floating point from 0.001 to 999.99.
• 8-digit non-resettable total (h=5 mm) from 1 to 99999999.
• Resettable total.
• Repeatability 0.2%.
• Loss of pressure <0.5 bar at maximum flow rate.
• Flow rate up to 60 l/min.
• Accuracy +/- 0.5%.
• Maximum operating pressure 70 bar.
• Bursting pressure: 140 bar.
