5,000L Safe Fill PS5 Store Self Bunded Tank with PIUSI ST Pump Kit and Filtration

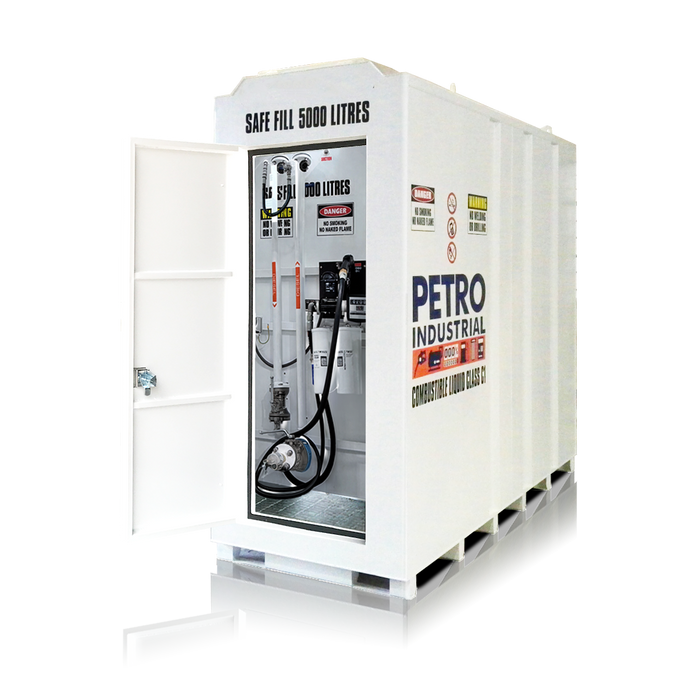

5,000L Safe Fill PS5 STORE - Self Bunded Tank with PIUSI ST Pump Kit and Filtration

With high flow 80lpm PIUSI ST Pumpkit - comes with pre-pump y strainer, 230V PIUSI E120 pump, K33 mechanical meter, 4m hose and A120 auto shut-off Nozzle.

PETRO Particulate and Water Filtration Kit:

• 2 x PI160 Single Filter Heads - PI-MHS2214-047
• 2 x VI4 Visual Differential Pressure Indicators - PI-VI3098/2.2
• 1 x DN32 Stainless Steel 316 Hex Nipple - SSN32
• 1 x SMC6 Particle Filter - PI-ME37-15-2-SMC6
• 1 x SMC10 Water Captor Filter - PI-M37-15-2-SMC10WS

Fully installed and wet tested, plug and play on-site. Pump supplied with standard 3m power lead and 3 PIN Australian.

**Options for 12VDC or 24VDC pump kits / Hose Reel / High Mast / Fluids Management System.

An innovative small footprint, fuel storage tank with full height pump bay, perfect for home base refuelling.

FEATURES:

• PUMP BAY - Lockable full height pump bay housing for secure storage of dispensing equipment
• COMPLIANCE - Designed and built in accordance with AS1940, AS1692 and AS1657
• BUND - Galvanised grated bunded area with drain
• FILL POINT - DN50 (2") Flanged 150# Fill Point with Full Bore Ball Valve / Non Return Valve / Male Camlock Fitting / Dust Cap / Mechanical Overfill Protection Valve and 12V Overfill Alarm
• SUCTION POINT - DN50 (2") Flanged 150# Suction Point with Anti Syphon / Foot Valve Assembly.
• SPARE SUCTION - Spare DN25 (1") Suction Outlet
• SPARE FITTINGS - Numerous spare fittings on top of the tank for retrofitting of instrumentation or other devices
• MANWAY - 600mm dia manway with internal ladder
• DIPSTICK - Calibrated anodised aluminium dipstick with brass lockable dip stick cover fitting
• INTERSTITIAL DIP - Anodised aluninium interstitial dipstick with brass lockable dipstick cover fitting
• INTERSTITIAL VENT - Interstitial emergency vent
• VENT - Primary tank free air vent
• DECALS - Statutory safety decals
• FORKLIFT TYNES - forklift tynes have been incorporated in the front / rear of the tank to facilitate offloading and positioning on site
• LIFTING LUGS - certified crane lifting lugs have been incorporated to facilitate crane offloading and positioning on site.  The lifting lugs are NOT certified to lift the tank with fuel.
• HOSE OUTLET - letterbox style secure weatherproof hose inlet / outlet assembly
• PAINT -  Paint Colour RAL9003 Signal White / Tanks are sandblasted to SA2 Standard. Hempel Marine Paint 3 Stage process. Primer Hempadur 1530. 2nd Coat Hempadur Hi-Build 4520. Final Coat Hempathane Enamel 55100 Finished dry film thickness no less than 180 um.

PRODUCT RANGE:

View the full range of Self Bunded Tanks manufactured by PETRO Industrial today!

Contact PETRO industrial's team of bulk fuel storage and dispensing specialists for more information today!
