PIUSI OCIO Tank Gauge - 240V, Single Tank Display

PIUSI | OCIO Tank Gauge 240V AC Single Tank Display

• Continuous tank level monitoring.
• OCIO detects the static pressure generated by the fluid height by means of a tube inserted into the tank and displays the fluid level or volume.
• The unit is equipped with an intuitive, complete software and permits the connection of two alarm or lock devices.
• Depending on the set alarm levels, the control unit activates or deactivates the contact by acting as a remote switch for starting the alarms or cutting power to the connected equipment.
• Maximum measurable height: 4m.
• Probe tube length: 10 m.

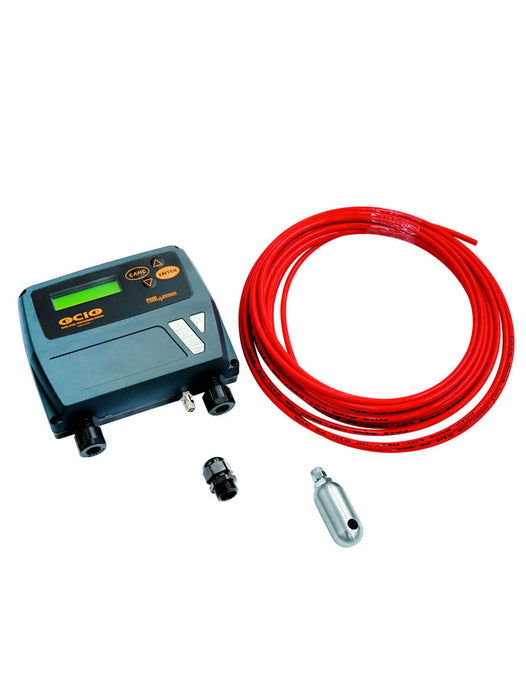

The system consists of:

• A tube for detecting static pressure: The tube end is inserted from the top of the tank and lowered down into the liquid until it touches the bottom.
• A control unit for displaying the level and managing the system.

• Set tank type and dimensions
• Define alarm levels
• Define indication level
• Define measurement unit
• Calibrate the instrument

Technical information:

• Supply voltage 230 V / 50 Hz (120 V / 60 Hz).
• Protection IP 55.
• Full scale 4 m (12 feet).
• Accuracy Å} 1 % full scale Contact for maximum and minimum level.
• Max tension 250Vac at 5 Amp (or 30Vdc at 5 Amp).
• Probe tube length 10 m (10,6 yards) (extensible up to 50 m (52 yards).

Level indication:

• Height (mm, inch).
• Volume (liters, gallons).
• Filling percentage (%).
• RS output for PC connection available.

Main Advantages:

• Continuous metering.
• Indication in height, volume, and filling percentage.
• Maximum and minimum level alarms.
• High accuracy.
• Intuitive software managing procedure.
• Easy installation.
• PC linkup option.
