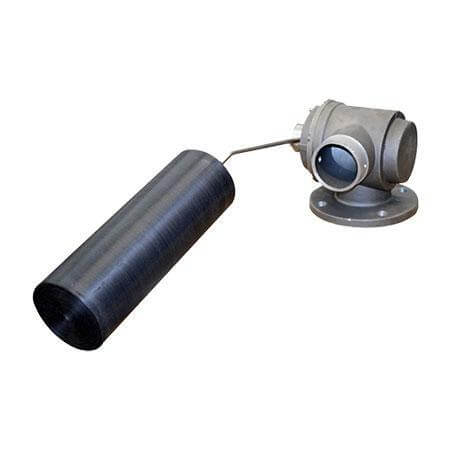

PETRO 80mm Overfill Valve - Right Angle Design

PETRO 80mm Overfill Valve - Right Angle Design

80mm (3”) Mechanical Overfill Protection Valve is suitable for use with the entire range of PETRO Containerised Self Bunded Tanks.

FEATURES:

• Cast aluminium structure compatible with Gasoline, Diesel, Kersosene, Ethanol, Methanol, Fuel Oil and Jet Fuel.
• Full ported design.
• Right Angle Float Operated.
• Timken bearing.
• Flanges: 80 NB ANSI 150.
• Temperature rating: -40°C to +80°C.

SPECIFICATIONS:

• Internal Diamater 72mm.
• Pressure Drop at 800Lpm 57Kpa.
• Angle of operation 90°.
• Maximum Operating Pressure 87Psi - 600Kpa.
• Average Flow rate 800Lpm @ 560Kpa.

MATERIALS OF CONSTRUCTION:

• Body: Cast Aluminium.
• Bearing: Timken.
• Spool: 304 Stainless Steel.
• Float: 304 Stainless Steel.
• Float Rod: 304 Stainless Steel.

DIMENSIONS:

• 400L x 120W x 150H
